Proposed Changes

  • Replace Drawable.getEnabledEffects() function with Drawable.enabledEffects
  • Only apply effect transform in Drawable.getLocalPosition and Drawable.sampleColor4b if drawable effects are enabled
  • Replace possiblyDefinedArgument || defaultValue pattern with if (typeof possiblyDefinedArgument === 'undefined') possiblyDefinedArgument = defaultValue in EffectTransform methods

Reason for Changes

  • Replace Drawable.getEnabledEffects() function with Drawable.enabledEffects
    • The EffectTransform.transform[Color/Point] methods, called once per pixel in touching tests, get a Drawable's enabled effects. Replacing the pseudo-getter function with a property speeds it up.
  • Only apply effect transform in Drawable.getLocalPosition and Drawable.sampleColor4b if drawable effects are enabled
  • Replace possiblyDefinedArgument || defaultValue pattern with if (typeof possiblyDefinedArgument === 'undefined') possiblyDefinedArgument = defaultValue in EffectTransform methods
    • This provides a small performance boost, possibly by removing the "truthy/falsy cast".

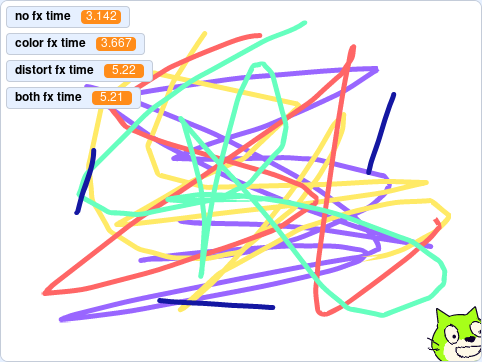

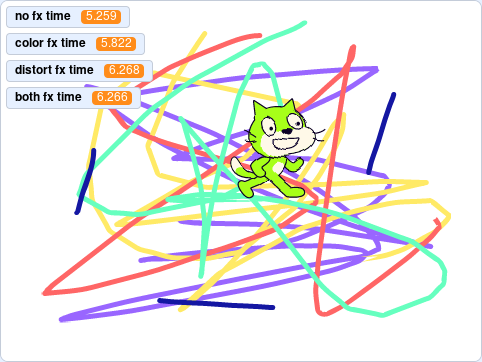

This gives a ~40% performance improvement to "touching color" checks on drawables with no effects enabled, and a ~15% performance improvement to ones with effects enabled, as seen in this benchmark:

Current This PR
image image

if ((localPosition[0] >= 0 && localPosition[0] < 1) && (localPosition[1] >= 0 && localPosition[1] < 1)) {
// Apply texture effect transform if the localPosition is within the drawable's space,
// and any effects are currently active.
if (drawable.enabledEffects !== 0 &&
Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Copy link
Contributor

@cwillisf cwillisf left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Thanks for simplifying this stuff! I have one suggestion for further simplification but let me know if you can think of a reason not to do so.

@adroitwhiz adroitwhiz force-pushed the effect-transform-optimizations branch from ec83308 to 8d1117b Compare January 7, 2020 21:13
Copy link
Contributor

@cwillisf cwillisf left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

👍 thanks!

@fsih fsih merged commit a67cd48 into scratchfoundation:develop Jan 9, 2020
