✨ ENH: Add Neighbourhood Querying Support To AnnotationStore

[John-P]

Enable easy and efficient querying of annotations within a neighbourhood of other annotations. This is planned to be executed in the query domain (e.g. by sqlite, outside of the Python GIL) where possible which should be faster than a user writing a for loop and performing many queries for this common use case.

Docs

Initial Concept

Pseudo query example

SELECT purple WITHIN 10 points of red

This is now implemented as:

results = store.nquery(
  where="props['color'] == 'red'",
  n_where="props['color'] == 'purple'",
  distance=10,
  # Use centre points of bounding boxes for distance
  mode="boxpoint-boxpoint",
)

Query Modes

In this PR

• Fix special "bbox_intersects" for DictionaryStore. This special geometry predicate was added as a special optimized case which is true if the bounding box of the query geometry intersects the bounding box of the stored geometry. This was never implemented for DicstionaryStore.
• Add geometry predicate "bbox_centre_within" which functions similarly to the special "bbox_intersects" predicate. "bbox_centre_within" returns True if the centre of the bounding box of the stored geometry is within the query bounds.
• Add nquery function which allows for querying for annotations which are within the neighbourhood of other annotations. This is done by supplying a query geometry and a where predicate to select the initial annotations to use as the centre of each neighbourhood. A second n_where predicate, distance, and mode argument are used to find neighbours.
  • distance is the size of the neighbourhood to search (see also mode). For a polygon-polygon check, this is via a buffer applied to the geometry, for point-point checks this is a radius, for box-box checks this is added to each side of the bounding box.
  • n_where is a predicate, similar to where, but used for filtering neighbours after selecting the annotations to query around via where.
  • mode may be "poly-poly" (full expensive polygon-polygon intersection), "box-box" (bounding box intersection) or "boxpoint-boxpoint" (centre of bounding box within distance). Currently, supported modes are only "poly-poly", "box-box", and "boxpoint-boxpoint". Others are possible, but would complicate implementation of these two sets. This would lose information about exactly which annotation was within the neighbourhood of another, but would be more efficient at finding intersections of two groups. Perhaps this could simply be shown as a 'recipe' in the documentation.

Benchmarking

Some initial benchmarking shows that SQLiteStore significantly outperforms DictionaryStore.

In this test an $n \times n$ grid of cell boundaries is generated and overlaid with another $n \times n$ grid. A query is then performed to find overlapping geometries via either any overlap of the bounding boxes (box-box) or the centre of the bounding boxes (boxpoint-boxpoint) within a distance $k$. Therefore, the largest test here where $n=100$ is a grid of $100 \times 100$ artificial cell boundaries labelled as class "A", overlaid with another $100 \times 100$ grid of cell boundaries labelled with class "B" for a total of $20,000$ geometries.

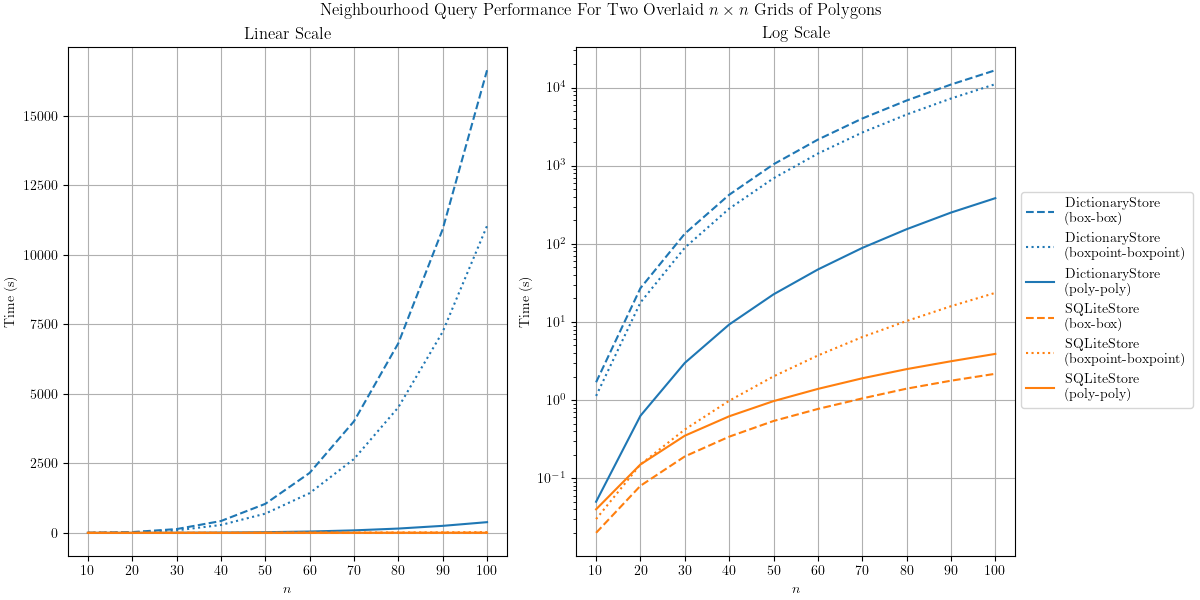

This plot is produced from runs on a 6 core Intel(R) Core(TM) i5-8500 CPU @ 3.00GHz CPU:

It is curious that the "boxpoint-boxpoint" query mode is slower than "poly-poly". I have a feeling that it may have something to do with Shapely 2.0 optimisations where it can vectorise batch geometry operations, or maybe there is some condition for the polygon-polygon intersection that allows for fast failing of tests.

Notes

• It is already much faster for SQLiteStore but this could be likely improved further by using a subquery.
• The implementation currently performs one query to get all annotations which will be the centre of $m$ secondary queries performed via a loop in Python. This could be refactored to be a nested sqlite subquery which will likely be faster. I think this optimisation could be a new PR though as this basic functionality is already usable.
• This is currently implemented in the base class, so all subclasses get it for 'free'.
• Another approach which may be faster for some cases (but more limited) is to query for initial annotations, then apply a distance buffer, merge overlapping geometries (reduce total number assuming many overlaps), query for all candidate matches once, compute intesection.

To-Do

• Test coverage (it's as good as I can get it for now)
• Fix linter issues
• Add diagrams to docstrings?
• Add support for um units as distance? (Decided to do in a follow up PR)
• Improve docstrings and add more examples? (suggestions welcome)
• More tests? (suggestions welcome)

[codecov]

Codecov Report

Merging #540 (0c9f6f3) into develop (bb78d2e) will increase coverage by 0.00%.
The diff coverage is 100.00%.

@@           Coverage Diff            @@
##           develop     #540   +/-   ##
========================================
  Coverage    99.74%   99.74%
========================================
  Files           63       63
  Lines         6744     6781   +37
  Branches      1107     1117   +10
========================================
+ Hits          6727     6764   +37
  Misses           8        8
  Partials         9        9

Impacted Files	Coverage Δ
tiatoolbox/annotation/storage.py	99.63% <100.00%> (+0.01%)	⬆️

📣 We’re building smart automated test selection to slash your CI/CD build times. Learn more

[shaneahmed]

Please can you also fix documentation issue as highlighted here #532

[measty]

Looks good! also tested it out with a real world example:

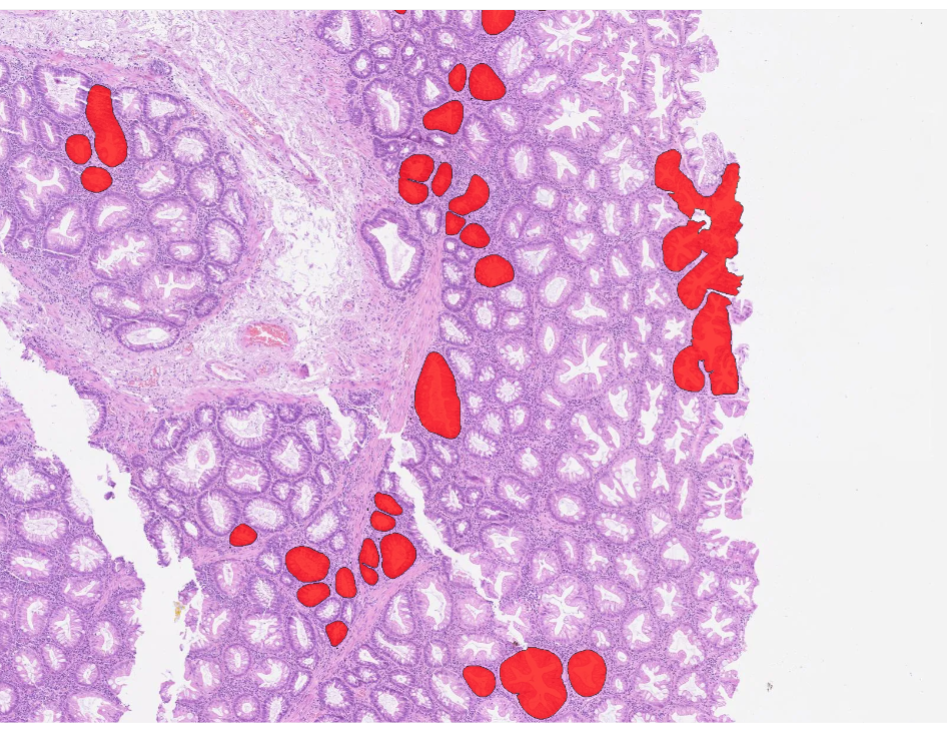

Glands with at least 1 neutrophil nearby

[John-P]

Looks good! also tested it out with a real world example: Glands with at least 1 neutrophil nearby

Nice! This might be nice to put in the docs as an example. Perhaps with all glands + neutrophils shown also.

[shaneahmed]

Thanks @John-P. I have made an online commit to fix eol.
@measty Please let me know when you are happy with this PR. I will merge it then.

[measty]

I've had another look through, and made one comment about the boxpoint-boxpoint implementation which may or may not help. But its purely to do with efficiency and not functionality, so am happy to approve this as is. If the change in the comment actually improves the benchmark, it could be incuded in this PR before its merged, or added in a separate one.

[measty]

The updates look good, happy to approve
