@antonfirsov antonfirsov commented Apr 20, 2019

Prerequisites

  • I have written a descriptive pull-request title
  • I have verified that there are no overlapping pull-requests open
  • I have verified that I am following matches the existing coding patterns and practice as demonstrated in the repository. These follow strict Stylecop rules 👮.
  • I have provided test coverage for my change (where applicable)

Description

This PR fixes #642 by limiting the memory consumption of ResizeProcessor to a value defined in Configuration.WorkingBufferSizeHintInBytes. Instead of allocating the whole first pass buffer, a sliding window is implemented by ResizeWorker<T>. The height of the window is a multiple of the vertical kernel's maximum diameter depending on Configuration.WorkingBufferSizeHintInBytes.

The implementation is most likely very different from MagicScaler's one (haven't seen it's code). It was a goal to keep the changes under control, the new code is basically a refactor of the old one.

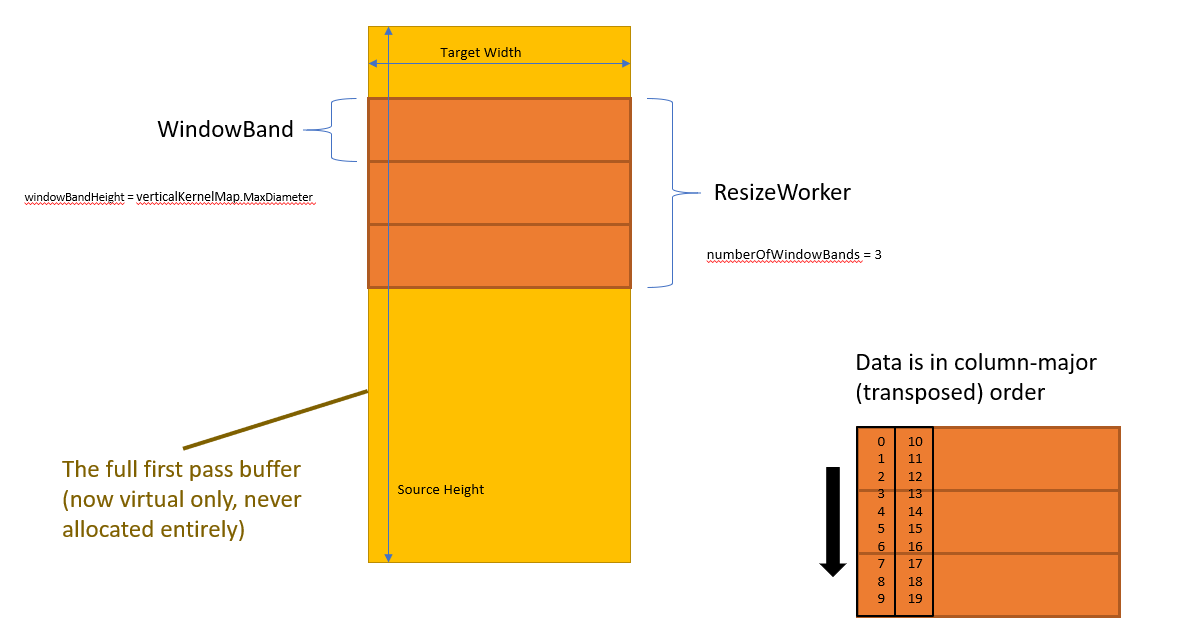

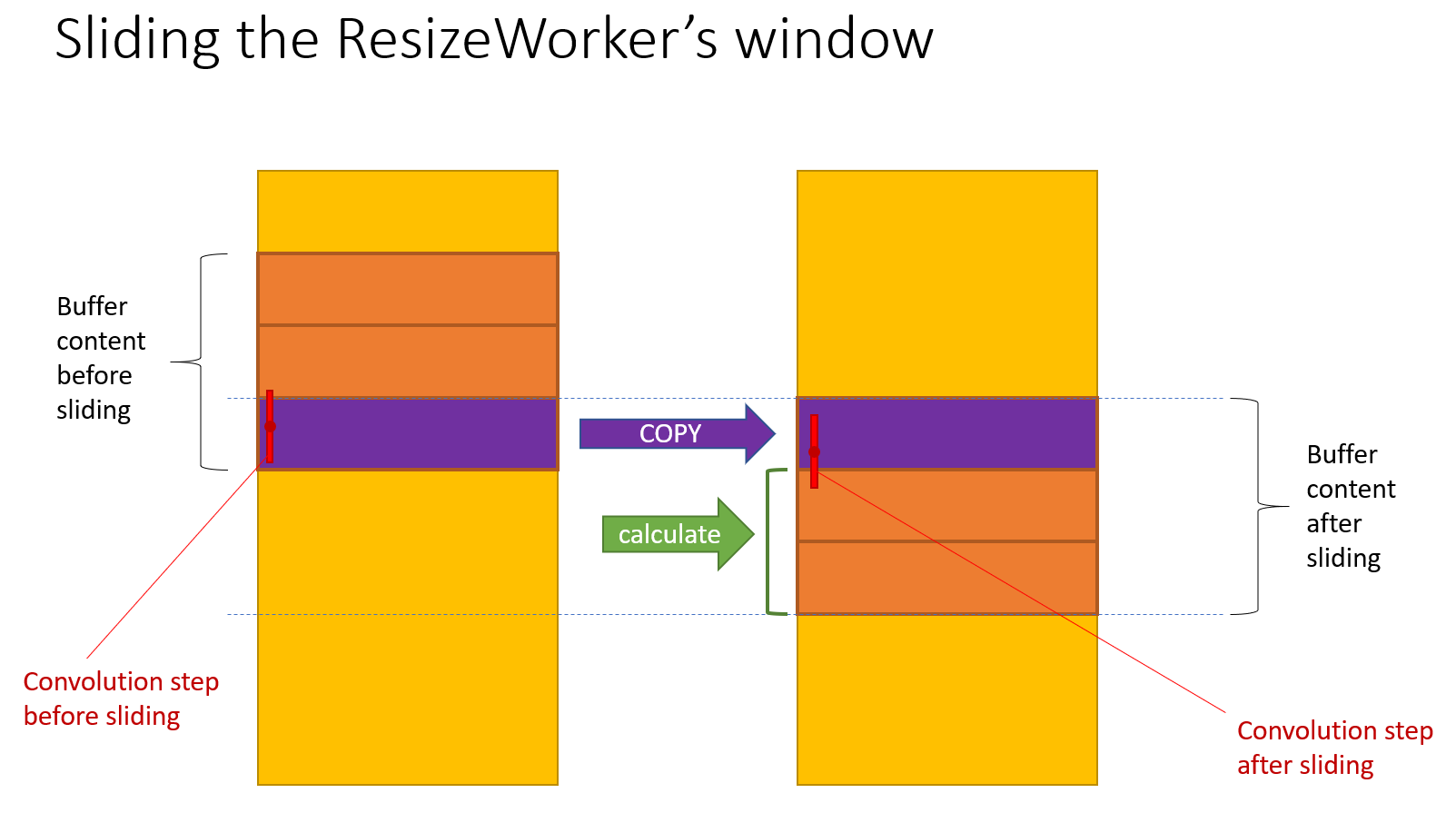

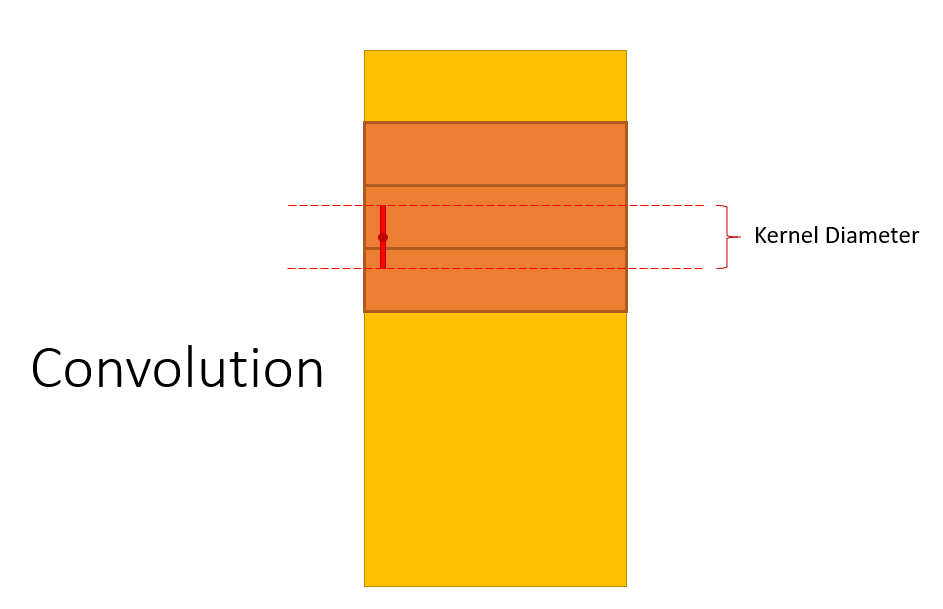

The optimization is visually explained in ResizeWorker.pptx:




Results

There is no regression in speed. (Actually, we are faster now for .NET 4.72 than before.)

The resizing of a 4000 x 4000 image to 300 x 300 has been memory profiled using JetBrains dotMemory. The resize operation has been executed 50 times in a single process.

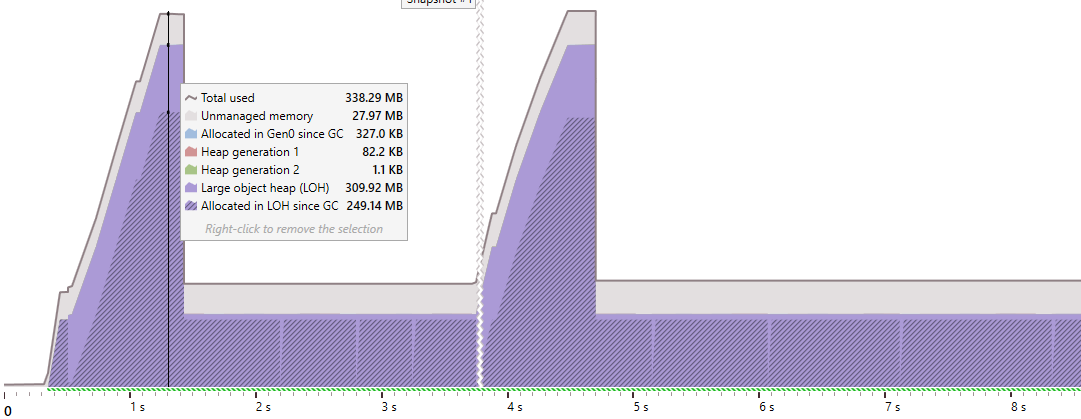

Memory profile before the optimization

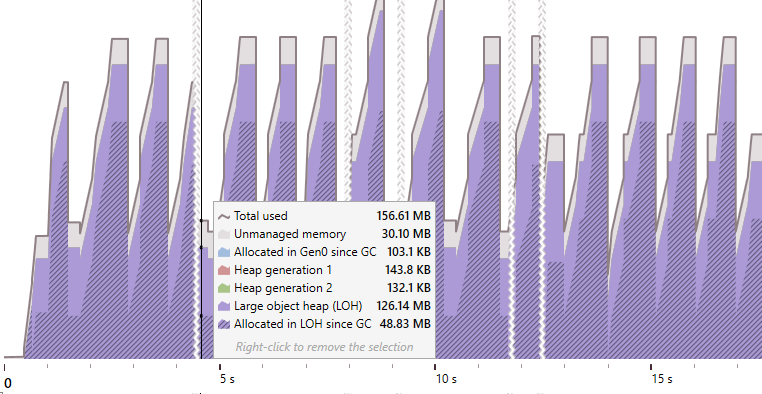

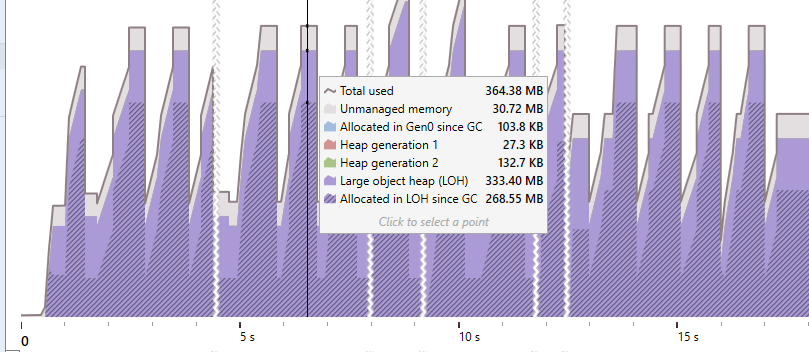

Timeline:

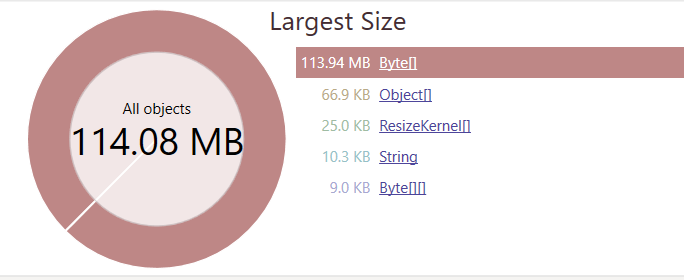

Typical snapshot:

Memory profile after the optimization

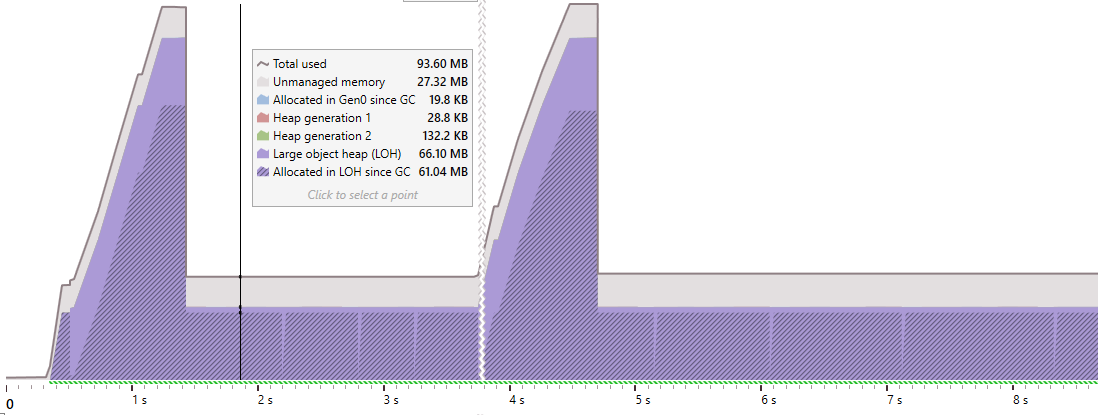

Timeline:


(The second peak has been only triggered because I made the snapshot. Can anyone explain this?)

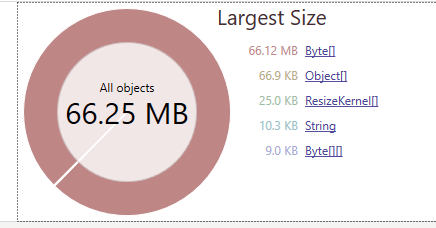

Typical snapshot:

@codecov
Copy link

codecov bot commented Apr 22, 2019

Codecov Report

Merging #888 into master will increase coverage by 0.04%.
The diff coverage is 89.83%.

Impacted file tree graph

@@            Coverage Diff             @@
##           master     #888      +/-   ##
==========================================
+ Coverage   88.98%   89.02%   +0.04%
==========================================
  Files        1018     1024       +6
  Lines       44537    44786     +249
  Branches     3220     3230      +10
==========================================
+ Hits        39632    39872     +240
- Misses       4194     4202       +8
- Partials      711      712       +1
Impacted Files Coverage Δ
...ests/TestUtilities/ImageProviders/SolidProvider.cs 60% <ø> (ø) ⬆️
...nsforms/ResizeKernelMapTests.ReferenceKernelMap.cs 92.3% <0%> (ø) ⬆️
tests/ImageSharp.Tests/Memory/Buffer2DTests.cs 100% <100%> (ø) ⬆️
...PixelFormats/PixelConversionModifiersExtensions.cs 100% <100%> (ø) ⬆️
.../Attributes/WithBasicTestPatternImagesAttribute.cs 100% <100%> (ø)
...ng/Processors/Transforms/Resize/ResizeProcessor.cs 94.78% <100%> (-1.45%) ⬇️
...Tests/TestUtilities/ImageProviders/FileProvider.cs 57.81% <100%> (ø) ⬆️
...estUtilities/ImageProviders/TestPatternProvider.cs 98.01% <100%> (ø) ⬆️
...ng/Processors/Transforms/Resize/ResizeKernelMap.cs 94.73% <100%> (+0.05%) ⬆️
.../TestUtilities/ImageProviders/TestImageProvider.cs 84.78% <100%> (+0.33%) ⬆️
... and 28 more

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update bcd5f02...58f8d63. Read the comment docs.
