FormLayout responsiveness fails with Dialog when line break used #1055

@TatuLund

Description

@TatuLund

Use the code below.

Size the browser window to be narrow and click Open dialog button.

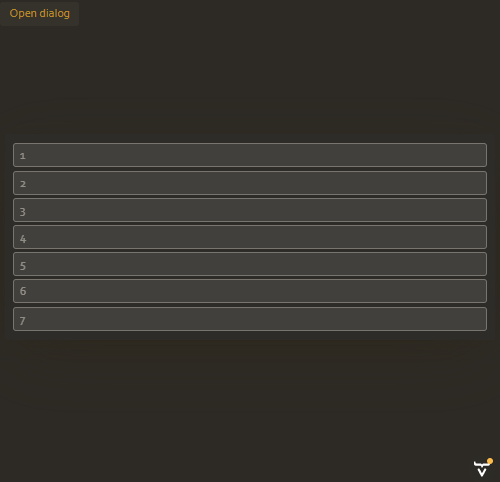

Dialog opens, all looks good

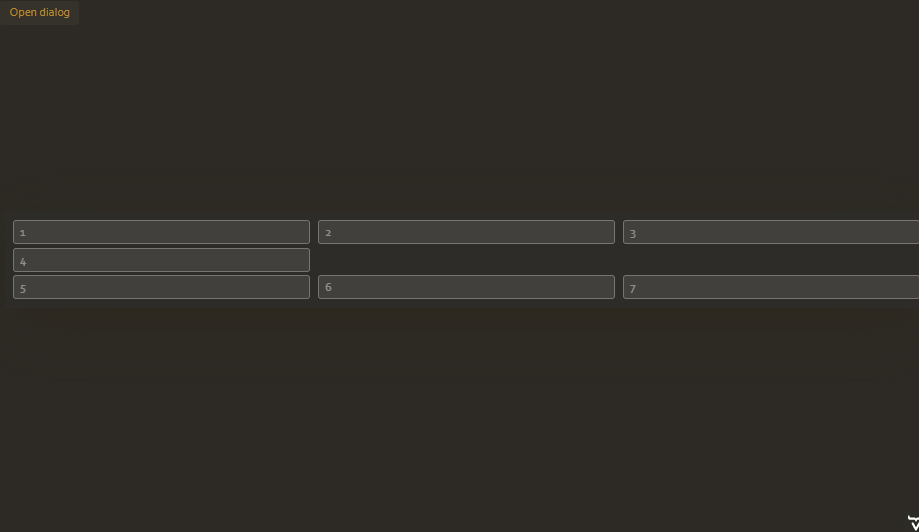

Start dragging Browser window wider, first things looks ok, and responsiveness works

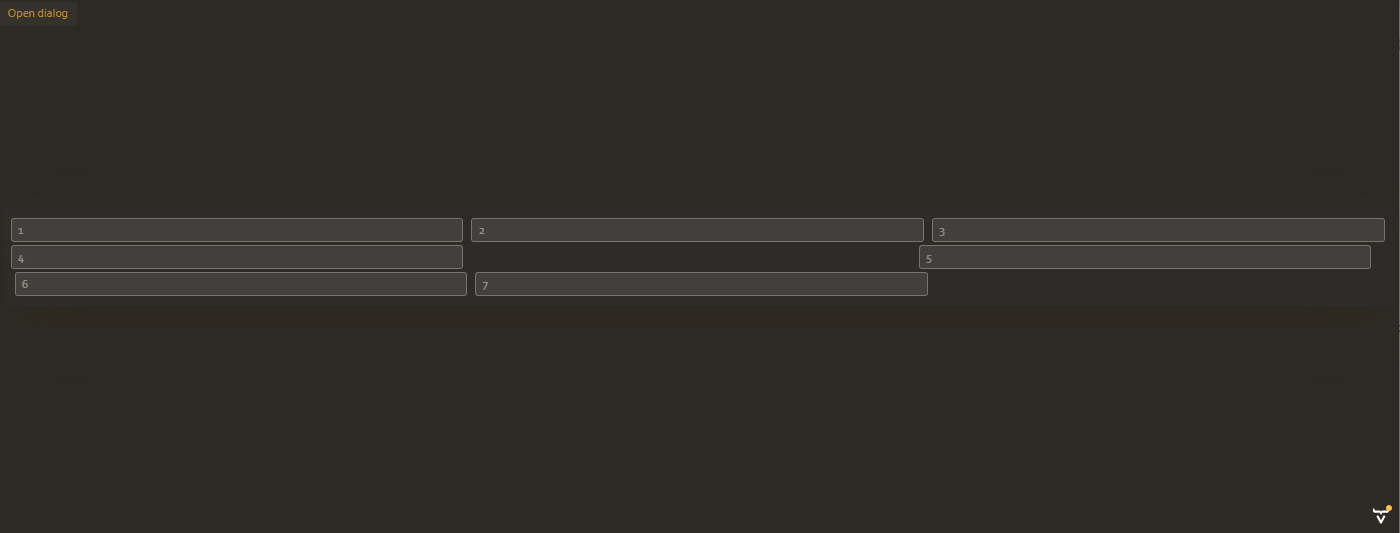

But when you drag it wide enough, the 5th field is misplaced.

import com.vaadin.flow.component.button.Button;
import com.vaadin.flow.component.dialog.Dialog;
import com.vaadin.flow.component.formlayout.FormLayout;
import com.vaadin.flow.component.formlayout.FormLayout.ResponsiveStep;
import com.vaadin.flow.component.orderedlayout.HorizontalLayout;
import com.vaadin.flow.component.textfield.TextField;
import com.vaadin.flow.dom.ElementFactory;
import com.vaadin.flow.router.Route;

@Route("formissue")
public class FormIssue extends HorizontalLayout {
    public FormIssue() {
        Dialog confDialog = new Dialog();
        FormLayout binderForm = new FormLayout();
        binderForm.setResponsiveSteps(
                new ResponsiveStep("32em", 1),
                new ResponsiveStep("40em", 2),
                new ResponsiveStep("50em", 3));

        TextField aField = new TextField();
        aField.setPlaceholder("1");
        TextField bField = new TextField();
        bField.setPlaceholder("2");
        TextField cField = new TextField();
        cField.setPlaceholder("3");
        TextField dField = new TextField();
        dField.setPlaceholder("4");
        TextField eField = new TextField();
        eField.setPlaceholder("5");
        TextField fField = new TextField();
        fField.setPlaceholder("6");
        TextField gField = new TextField();
        gField.setPlaceholder("7");

        binderForm.add(aField);
        binderForm.add(bField);
        binderForm.add(cField);
        binderForm.add(dField);
        binderForm.getElement().appendChild(ElementFactory.createBr());
        binderForm.add(eField);
        binderForm.add(fField);
        binderForm.add(gField);

        confDialog.add(binderForm);
        confDialog.setResizable(true);

        Button openDialog = new Button("Open dialog");
        openDialog.addClickListener(event -> {
          confDialog.open();

        });
        add(openDialog);
    }
}
