Remove overlay 70% opacity to allow more flexibility

[muttli]

Purpose

Remove the forced 70% opacity overlay to allow more flexibility - for instance if you want 90% instead.

Use

When declaring overlay background, you could feed it rgba(255, 255, 255, 0.9) to achieve a white overlay that is only slightly transparent.

[osdnk]

@Famousfrank
Thanks! Can you tell sth more about these changes? Maybe attach some screenshot or snack?

[muttli]

@osdnk currently, If I supply a flat black background color to the overlay

<DrawerLayout
  drawerPosition={DrawerLayout.positions.Right}
  overlayColor="rgba(0, 0, 0, 1)"
  drawerType="slide"
  renderNavigationView={ ... }
>
  {props.children}
</DrawerLayout>

The result will be that the overlay has a black background color with a 70% opacity.

If I supply rgba(0, 0, 0, 5) the result will be an overlay with 35% opacity because of the 0.7 multiplier.

My suggestion is to remove the 0.7 setting (set it to 1), to allow people to set the background color themselves. For instance, if I want a red background at 90% opacity, I can just give rgba(255, 0, 0, 0.9) to the overlay and it will be red 90% opacity.

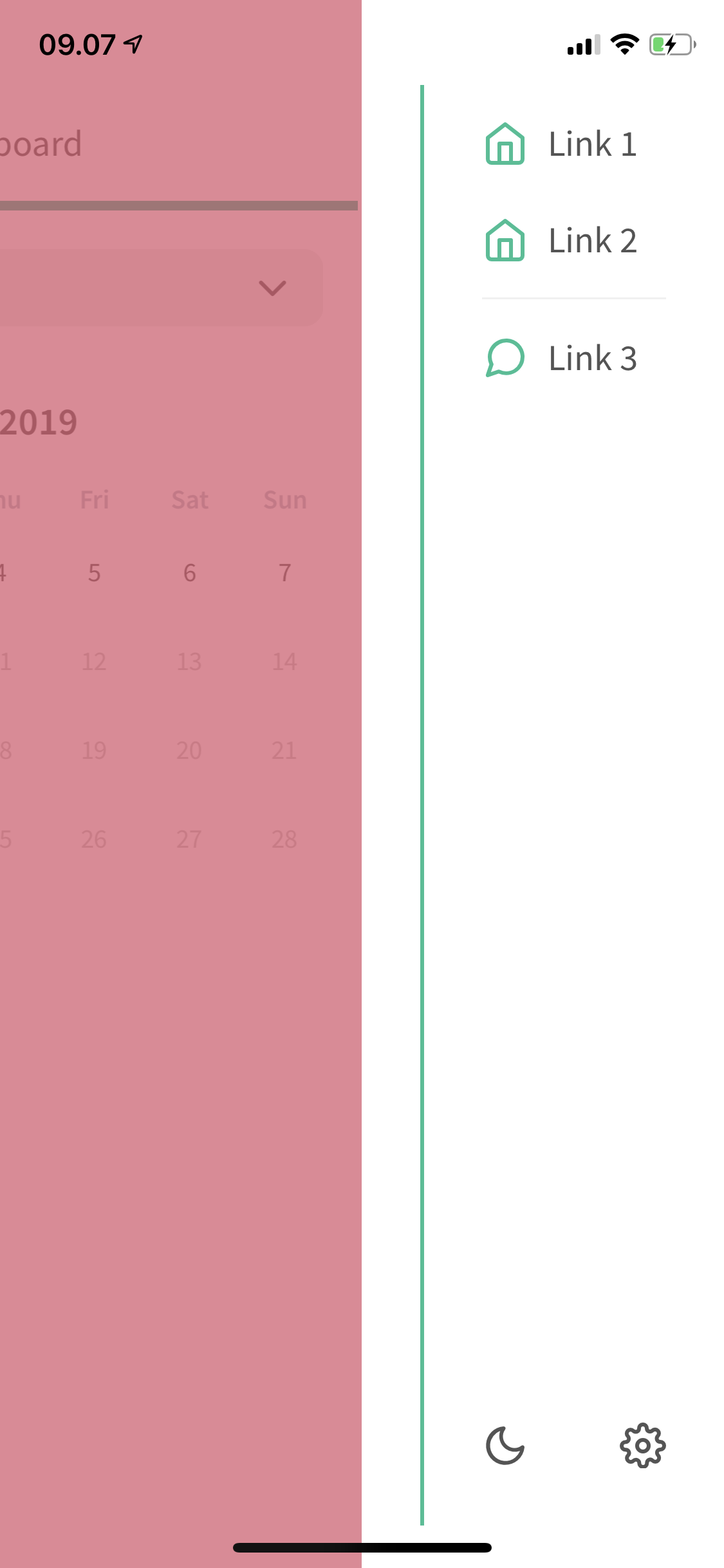

Given to the plugin: rgba(255, 0, 0, 1) (solid red color) with the force 0.7 opacity multiplier in place.

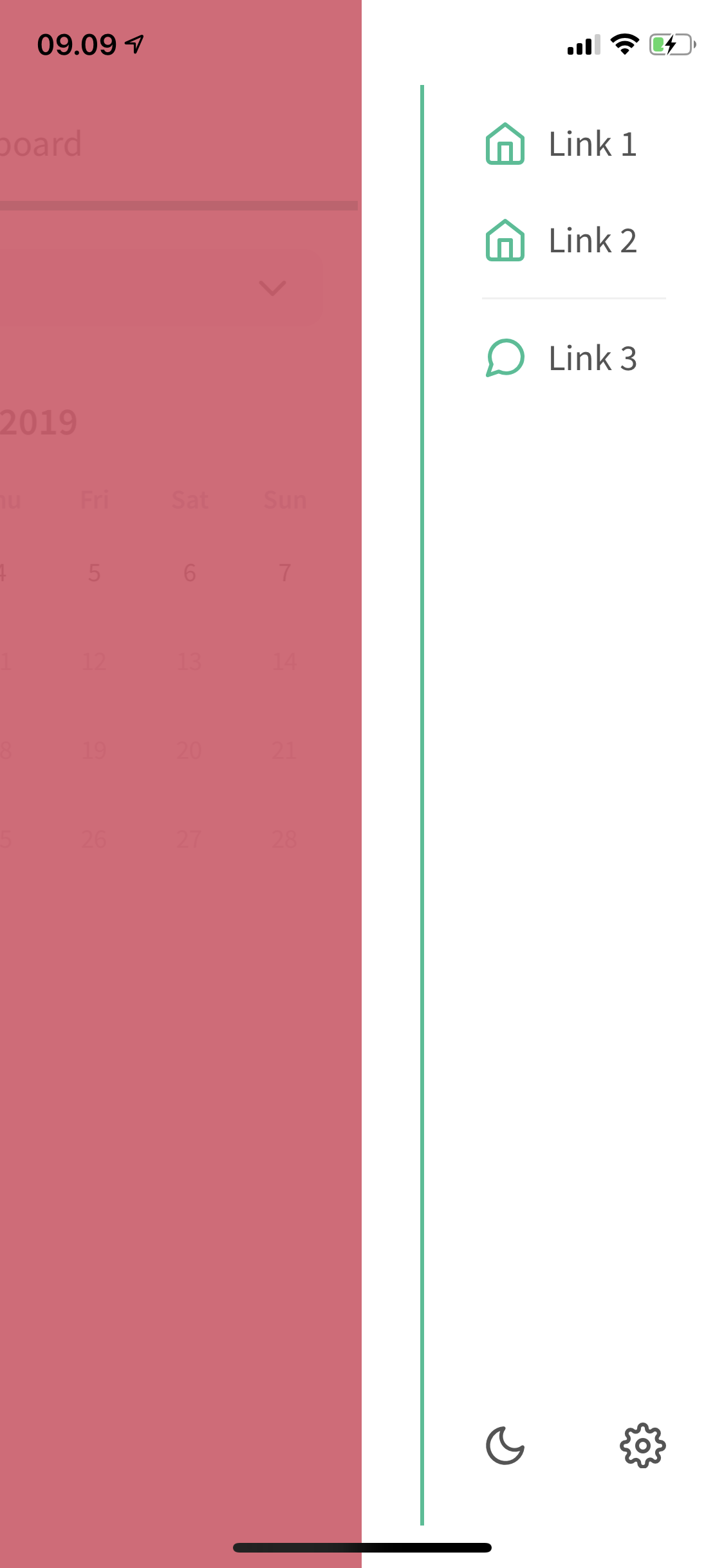

Given to the plugin: rgba(255, 0, 0, 0.9) (red at 90% opacity) with the force 0.7 opacity multiplier removed:

The red is to make it even more clear what is happening. In my case I need a white 90% overlay, and while I can live with 70%, being able to set it at 90% will just make it a bit nicer.

[muttli]

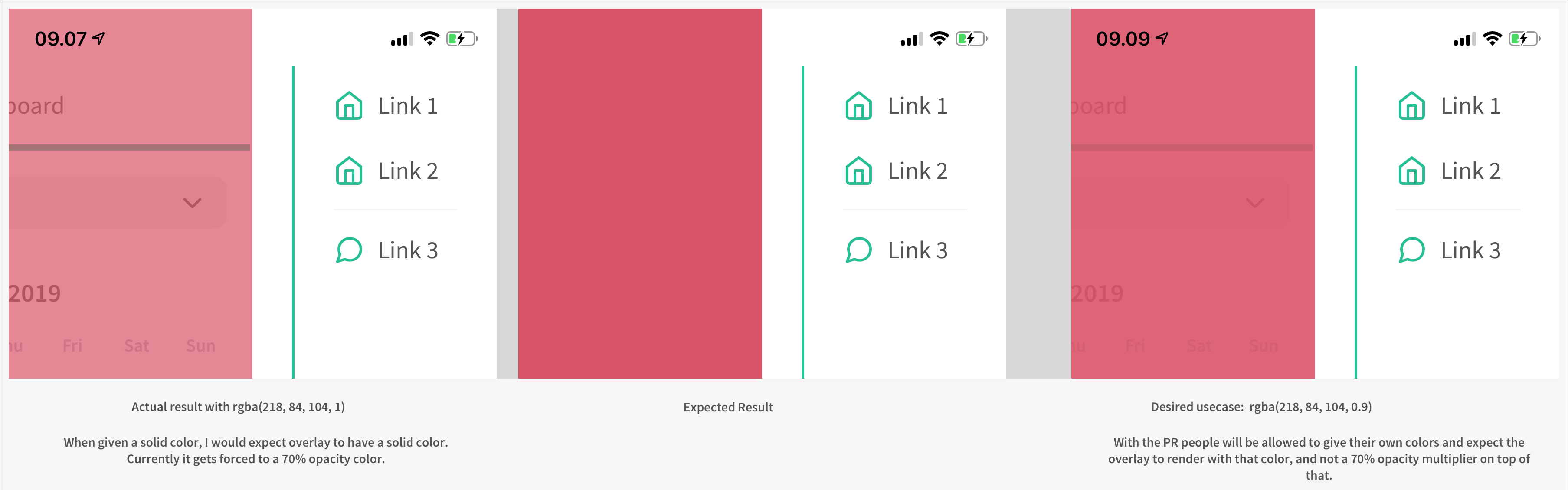

Tried to illustrate it better with this image:

[kmagiera]

Can you please take a look at my inline comment?

Also, this seem to be a relatively small change and I'd prefer to keep such changes backward compatible. One suggestion would be to change default color from black to rgba(0,0,0,0.7) (semitransparent black) which should yield a similar end effect unless you set overlayColor which I think is much less frequent.

[kmagiera]

not sure if there is point in interpolating [0,1] to [0,1]. Would see this only making sense if we support overshooting (such that _openValue is greater than 1) but I don't think we do.

[muttli]

As far as I understand, this is just used for the animation right? This is basically what forced the 70% opacity. If the goal would be to allow people to define their own overlay background (even solids) this needs to be 1. Am I misunderstanding something?

[muttli]

Also, this seem to be a relatively small change and I'd prefer to keep such changes backward compatible. One suggestion would be to change default color from black to rgba(0,0,0,0.7) (semitransparent black) which should yield a similar end effect unless you set overlayColor which I think is much less frequent.

Good point! Updated the default color.

[kmagiera]

Sweet, thanks 🙌
