5 changes: 5 additions & 0 deletions .changeset/stupid-carrots-jam.md
Original file line number Diff line number Diff line change
@@ -0,0 +1,5 @@
---
'@primer/react': minor
---

Adds a toggle switch component
225 changes: 225 additions & 0 deletions docs/content/Switch.mdx
Original file line number Diff line number Diff line change
@@ -0,0 +1,225 @@
---
componentId: switch
title: Switch
description: Toggles a setting on or off, and immediately saves the change
status: Alpha
source: https://github.com/primer/react/blob/main/src/Switch.tsx
storybook: '/react/storybook?path=/story/switch-examples--default'
---

## Examples

### Basic

```jsx live
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={2} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch aria-labelledby="switchLabel" />
</Box>
```

### Uncontrolled (on)

```jsx live
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={2} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch defaultOn aria-labelledby="switchLabel" />
</Box>
```

### Controlled

```javascript noinline live
const Controlled = () => {
const [isOn, setIsOn] = React.useState(false)

const onClick = () => {
setIsOn(!isOn)
}

const handleSwitchChange = on => {
console.log(`new switch "on" state: ${on}`)
}

return (
<>
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={2} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch onClick={onClick} onChange={handleSwitchChange} on={isOn} aria-labelledby="switchLabel" />
</Box>
<p>The switch is {isOn ? 'on' : 'off'}</p>
</>
)
}

render(Controlled)
```

### Small

```jsx live
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={1} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch aria-labelledby="switchLabel" size="small" />
</Box>
```

### Delayed toggle with loading state

```javascript noinline live
const LoadingToggle = () => {
const [isLoading, setIsLoading] = React.useState(false)
const [isOn, setIsOn] = React.useState(false)

async function switchSlowly(currentOn) {
await new Promise(resolve => setTimeout(resolve, 1500))
return await !currentOn
}

async function onClick() {
setIsLoading(!isLoading)
const newSwitchState = await switchSlowly(isOn)
setIsOn(newSwitchState)
}

const handleSwitchChange = React.useCallback(
on => {
setIsLoading(false)
},
[setIsLoading]
)

return (
<>
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={2} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch
aria-labelledby="switchLabel"
isLoading={isLoading}
on={isOn}
onClick={onClick}
onChange={handleSwitchChange}
/>
</Box>
<p>The switch is {isOn ? 'on' : 'off'}</p>
</>
)
}

render(LoadingToggle)
```

### Disabled

```jsx live
<Box display="flex" maxWidth="300px">
<Box flexGrow={1} fontSize={2} fontWeight="bold" id="switchLabel">
Notifications
</Box>
<Switch aria-labelledby="switchLabel" disabled />
</Box>
```

### With associated caption text

```jsx live
<Box display="flex">
<Box flexGrow={1}>
<Text fontSize={2} fontWeight="bold" id="switchLabel" display="block">
Notifications
</Text>
<Text color="fg.subtle" fontSize={1} id="switchCaption" display="block">
Notifications will be delivered via email and the GitHub notification center
</Text>
</Box>
<Switch aria-labelledby="switchLabel" aria-describedby="switchCaption" />
</Box>
```

### Left-aligned with label

```jsx live
<>
<Text fontSize={2} fontWeight="bold" id="switchLabel" display="block" mb={1}>
Notifications
</Text>
<Switch statusLabelPosition="end" aria-labelledby="switchLabel" />
</>
```

## Props

/\*\* Whether the "on" and "off" labels should appear before or after the switch.
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

FYI

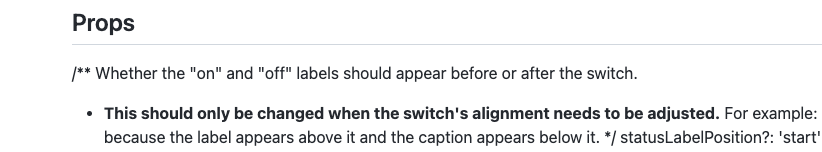

Screenshot 2022-03-17 at 09 49 19


- **This should only be changed when the switch's alignment needs to be adjusted.** For example: It needs to be left-aligned because the label appears above it and the caption appears below it.
\*/
statusLabelPosition?: 'start' | 'end'

<PropsTable>
<PropsTableRow name="aria-describedby" type="string" description="The id of the DOM node that describes the switch" />
<PropsTableRow
name="aria-labelledby"
type="string"
required
description="The id of the DOM node that labels the switch"
/>
<PropsTableRow name="defaultOn" type="boolean" description="Uncontrolled - whether the switch is turned on" />
<PropsTableRow name="disabled" type="boolean" description="Whether the switch is ready for user input" />
<PropsTableRow name="isLoading" type="boolean" description="Whether the switch is ready for user input" />
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Can we change this to loading?

Suggested change
<PropsTableRow name="isLoading" type="boolean" description="Whether the switch is ready for user input" />
<PropsTableRow name="loading" type="boolean" description="Whether the switch is ready for user input" />

Also, is it intentional that the description is the same as the disabled prop?

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Not intentional. Thanks for flagging that.

<PropsTableRow name="on" type="boolean" description="Whether the switch is turned on" />
Copy link
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Should we call this prop checked instead of on to align with the <input type="checkbox"> API?

Copy link
Contributor Author

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

I'm good with that.

<PropsTableRow
name="onChange"
type="(on: boolean) => void"
description="The callback that is called when the switch is toggled on or off"
/>
<PropsTableRow
name="onClick"
type="(e: MouseEvent) => void"
description="The callback that is called when the switch is clicked"
/>
<PropsTableRow name="size" type="'small' | 'medium'" description="Size of the switch" />
<PropsTableRow
name="statusLabelPosition"
type="'start' | 'end'"
description={
<>
<div>Whether the "on" and "off" labels should appear before or after the switch.</div>
<div>
<Text fontWeight="bold">This should only be changed when the switch's alignment needs to be adjusted.</Text>{' '}
For example: It needs to be left-aligned because the label appears above it and the caption appears below it.
</div>
</>
}
/>
</PropsTable>

## Status

<ComponentChecklist
items={{
propsDocumented: true,
noUnnecessaryDeps: true,
adaptsToThemes: true,
adaptsToScreenSizes: true,
fullTestCoverage: true,
usedInProduction: false,
usageExamplesDocumented: true,
hasStorybookStories: true,
designReviewed: false,
a11yReviewed: false,
stableApi: false,
addressedApiFeedback: false,
hasDesignGuidelines: false,
hasFigmaComponent: false
}}
/>
2 changes: 2 additions & 0 deletions docs/src/@primer/gatsby-theme-doctocat/nav.yml
Original file line number Diff line number Diff line change
Expand Up @@ -123,6 +123,8 @@
url: /StyledOcticon
- title: SubNav
url: /SubNav
- title: Switch
url: /Switch
- title: TabNav
url: /TabNav
- title: Textarea
