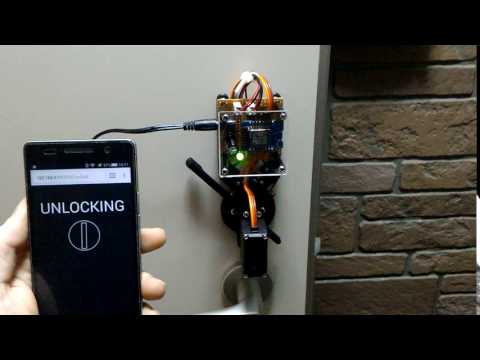

Wifi enabled door lock that can be controlled via either MQTT messages or HTTP requests.
Project page: https://cms.maximemoreillon.com/articles/237
- Arduino IDE with support for ESP8266
- Async MQTT client
- ESPAsyncTCP

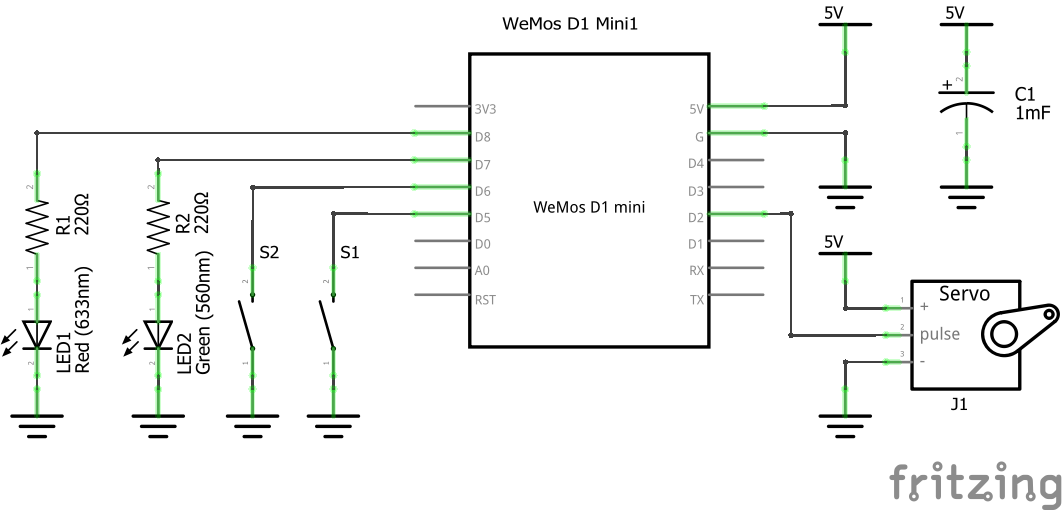

- Wemos D1 Mini
- MG996R servo
- 2x Limit switch
- 2x LED + resistor
- Screws and standoffs
STL files available on Thingiverse
