Calculates the total visible surface from every point of a given terrain. For example, the viewshed for the summit of a mountain will be large and for a valley it will be small. There are other viewshed calculators, most notably for Arcgis, but they only calculate single viewsheds for a specific point. The algorithm used here however takes advantage of the computational efficiency gained by calculating all, therefore the total, viewsheds for a given region.

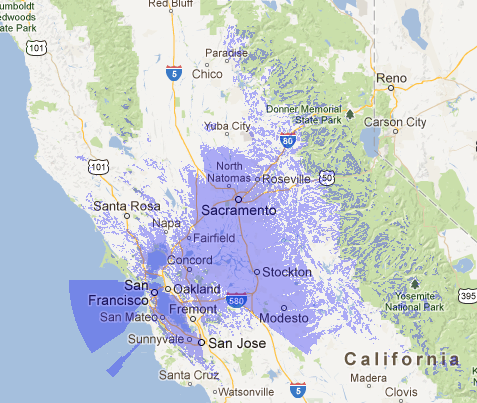

This is an example of a single viewshed from the summit of Mt. Diablo in California. It was created by another viewshed tool called Caltopo.
This is an example of a heatmap of a total viewshed surface area (the darker square in the middle). Notice how its features are similar but different to the underlying elevation data. It still represents peaks and valleys, but for example, its northern side is brighter because it can see further into the lower regions of the northern part of underlying elevation data. The heatmap is smaller because it doesn't calculate values at the edges of the elevation data, it can't calculate the visibility of regions it is not given data for.
This project is based on the work of Siham Tabik, Antonio R. Cervilla, Emilio Zapata, Luis F. Romero in their paper Efficient Data Structure and Highly Scalable Algorithm for Total-Viewshed Computation: https://ieeexplore.ieee.org/document/6837455
However it notably improves on it by using Band of Sight 'shapes' rather than calculating the coordinates of every single Band. This has massive space improvement and therefore speed improvement. It also reduces the need for a linked list, further improving the simplicity of the algorithm.
There's also a new paper by the same author from 2021 that seems to focus more on parallelism https://arxiv.org/pdf/2003.02200.
Currently only the .bt file format is supported.
The best source of elevation data I have found is here: https://www.viewfinderpanoramas.org/Coverage%20map%20viewfinderpanoramas_org3.htm It's mostly in the .hgt format, but can easily be converted to .bt using gdal_translate.
Example: RUST_LOG=debug cargo run -- --input N51W002.bt
A heatmap of total viewshed surface areas will be saved to ./heatmap.png. The path can be changed with --output-dir path/to/dir. Note that the same image file is updated for every sector angle, so you can watch the details improve as the computatioin progresses.
The heatmap is generally only of the central third of the input file. You can see an elevation heatmap of the original here: https://dwtkns.com/srtm30m, you should be able match features from its central area.
Usage: total-viewsheds [OPTIONS] --input <Path to the DEM file>
Options:
--input <Path to the DEM file>
The input DEM file. Currently only `.hgt` files are supported
--max-line-of-sight <The maximum expected line of sight in meters>
The maximum distance in metres to search for visible points. For a TVS calculation to be truly correct, it must have access to all the DEM data around it that may possibly be visible to it. However, the further the distances searched the exponentially greater the computations required. Note that the largest currently known line of sight in the world is 538km. Defaults to one third of the DEM width
--rings-per-km <Expected rings per km>
Size of each DEM point The maximum number of visible rings expected per km of band of sight. This is the number of times land may appear and disappear for an observer looking out into the distance. The value is used to decide how much memory is reserved for collecting ring data. So if it is too low then the program may panic. If it is too high then performance is lost due to unused RAM
[default: 5]
--observer-height <Height of observer in meters>
The height of the observer in meters
[default: 1.65]
--compute <The method of running the kernel>
Where to run the kernel calculations
[default: vulkan]
Possible values:
- cpu: Conventional CPU computations. The slowest method
- vulkan: A SPIRV shader run on the GPU via Vulkan
- cuda: TBC
--output-dir <Directory to save output to>
Path to save the heatmap of the total viewshed surfaces
[default: ./]
-h, --help
Print help (see a summary with '-h')
- Install
cargo-gpu:cargo install --git https://github.com/rust-gpu/cargo-gpu cargo-gpu - Compile:
cargo gpu build --shader-crate crates/shader
Note that the pre-compiled shader already comes with the source code (at crates/shader/total_viewsheds_kernel.spv). So you only need to compile the shader if you're developing it.
The license is the same as that used for the original paper's sample code: https://github.com/SihamTabik/Total_Viewshed
The holy grail of DEM data. He's done all the work to clean ad void fill the DEM data http://www.viewfinderpanoramas.org
https://opentopography.org Seems to be an effort to bring everything together. But doesn't seem to clean up the data like View Finder does.
Apparently this is the highest resolution and most comprehensive DEM data: https://e4ftl01.cr.usgs.gov/MEASURES/SRTMGL1.003/2000.02.11/SRTMGL1_page_1.html
Map of coverage (80%) and total size of data (35GB)
User guide: https://lpdaac.usgs.gov/documents/179/SRTM_User_Guide_V3.pdf
https://gdal.org/drivers/raster/srtmhgt.html
https://calgaryvisioncentre.com/news/2017/6/23/tdgft1bsbdlm8496ov7tn73kr0ci1q
- Why is computing 0° so much faster than computing 1° and 45° so much faster than 46°??
-
--rings-per-kmdoesn't seem intuitive and doesn't give an informative error when it fails. - SRTM files have a resolution in degrees not metres. We have to accomodate that.
