Fix cobertura Jenkins reporter + source link support #614

daveMueller · 2019-11-10T01:33:13Z

closes #197, closes #408 and really closes #295 and maintains #257

update fork

Update fork

daveMueller · 2019-11-10T02:04:00Z

Filename attribute is now relative to system root and the reports can properly be displayed in jenkins running on linux or windows. I also attached a snipped form the generated report where the source tag and the filename tag can be seen.

This doesn't really solve the issue #413 because the introduced relative paths aren't relative to the project base.

MarcoRossignoli · 2019-11-10T12:46:28Z

Thanks David bit busy next week I'll take a look asap!

MarcoRossignoli · 2019-11-21T13:53:28Z

src/coverlet.core/CoverageResult.cs

    {
        public string Identifier;
        public Modules Modules;
+        public bool IsSourceLinkUsed;


nit: I prefer to maintain switch name UseSourceLink

MarcoRossignoli · 2019-11-21T13:54:21Z

src/coverlet.core/Reporters/CoberturaReporter.cs

 using System.Globalization;
 using System.IO;
 using System.Linq;
+using System.Runtime.InteropServices;


Is this necessary?

MarcoRossignoli · 2019-11-21T14:49:09Z

src/coverlet.core/Reporters/CoberturaReporter.cs

            return Encoding.UTF8.GetString(stream.ToArray());
        }
+
+        private static IEnumerable<string> GetRootDirs(Modules modules, bool isSourceLinkUsed)


why not

if (isSourceLinkUsed) { return new[] { string.Empty }; } else { return modules.Values.SelectMany(k => k.Keys).Select(Directory.GetDirectoryRoot).Distinct(); }

Does it work?

Yes I tested it. Done.

MarcoRossignoli · 2019-11-21T15:03:24Z

src/coverlet.core/Reporters/CoberturaReporter.cs

+            return sources.Select(Directory.GetDirectoryRoot).Distinct();
+        }
+
+        private static string GetRelativePathFromBase(IEnumerable<string> basePaths, string path, bool isSourceLinkUsed)


rename rootPaths and useSourceLink pls

MarcoRossignoli · 2019-11-21T15:12:55Z

src/coverlet.core/Reporters/CoberturaReporter.cs

+            {
+                if (path.StartsWith(basePath))
+                {
+                    relativePath = path.Substring(basePath.Length);


what do you think about

if (isSourceLinkUsed) { return path; } foreach (var root in basePaths) { if (path.StartsWith(root)) { return path.Substring(root.Length); } } Debug.Assert(false, "Unexpected, we should find at least one path starts with one pre-build roots list"); return path;

it seems more logic to me...when we found one valid root we can return immediatly, if we don't found any valid root(unexpected) we return original path, so we avoid exception and we'll generate a file(better than nothing), I added also an assertion so on debug we'll catch possible problem.

Yes, I agree. Done.

MarcoRossignoli · 2019-11-21T15:17:46Z

Thank's @daveMueller for the effort here and sorry for the delay.

I'd like to add more tests on this

one test with 2 file from two different windows roots i.e. c:\proj\file.cs and e:\proj\file.cs
one test with source link parameter true

MarcoRossignoli · 2019-11-28T13:14:39Z

@daveMueller let me know if you want complete this or if can finish this PR on top of your precious work!

daveMueller · 2019-11-28T23:29:42Z

@daveMueller let me know if you want complete this or if can finish this PR on top of your precious work!

@MarcoRossignoli Yes I will complete it. I already did most of the things you mentioned locally. My daytime job has been keeping me busy last week but I think I will find some free time on the weekend.

MarcoRossignoli · 2019-11-29T06:18:26Z

No worries no rush, only asked to know!
And feel free to say "I don't have time" you're not obligated, thanks a lot for your effort!

daveMueller · 2019-12-05T00:36:39Z

@MarcoRossignoli I still want to refactore the tests. Had some problems to get them running on X plat and so they are still not really clean. If you have some ideas what could be changed, please let me know.

MarcoRossignoli · 2019-12-05T08:55:46Z

test/coverlet.core.tests/Reporters/CoberturaReporterTests.cs

+            CoberturaReporter reporter = new CoberturaReporter();
+            string report = reporter.Report(result);
+
+            var doc = XDocument.Load(new MemoryStream(Encoding.UTF8.GetBytes(report)));


What do you think about

List<string> rootPaths = doc.Element("coverage").Element("sources").Elements().Select(e => e.Value).ToList(); List<string> relativePaths = doc.Element("coverage").Element("packages").Element("package").Element("classes").Elements().Select(e => e.Attribute("filename").Value).ToList(); List<string> possiblePaths = new List<string>(); foreach (string root in rootPaths) { foreach (string relativePath in relativePaths) { possiblePaths.Add(Path.Combine(root, relativePath)); } } Assert.Contains(absolutePath1, possiblePaths); Assert.Contains(absolutePath2, possiblePaths);

This should be the expected alg of every reporter that can read a cobertura format...we try every permutation root+path and check if exists

Yes I changed it that way.

MarcoRossignoli · 2019-12-05T09:00:55Z

test/coverlet.core.tests/Reporters/CoberturaReporterTests.cs

+            CoberturaReporter reporter = new CoberturaReporter();
+            string report = reporter.Report(result);
+
+            var doc = XDocument.Load(new MemoryStream(Encoding.UTF8.GetBytes(report)));


ok maybe cleanup a bit with doc.Element("coverage").Element("packages").Element("package").Element("classes").Elements().Select(e => e.Attribute("filename").Value).Single();

MarcoRossignoli · 2019-12-05T09:24:39Z

@daveMueller can you test and attach also a reportgenerator result?Only to be sure to be compatible with it(most used tool).

daveMueller · 2019-12-07T21:50:33Z

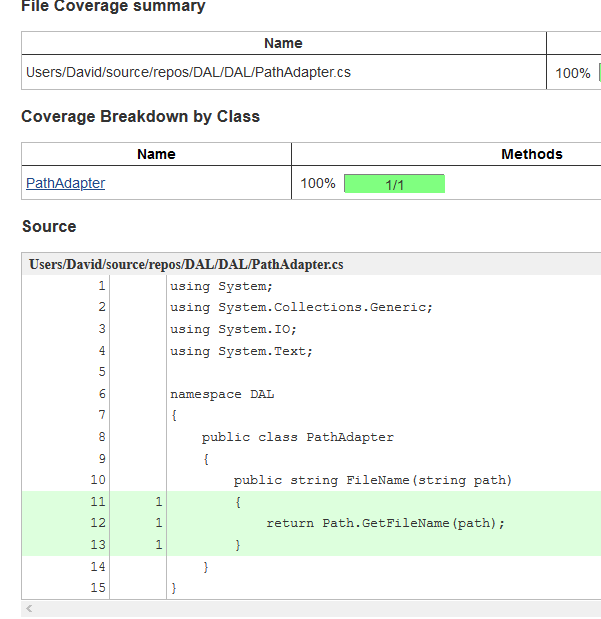

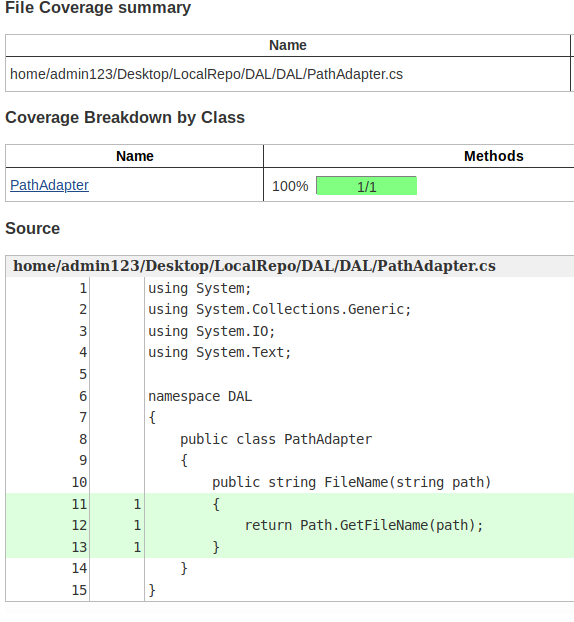

@MarcoRossignoli are the attached screenshots sufficient?

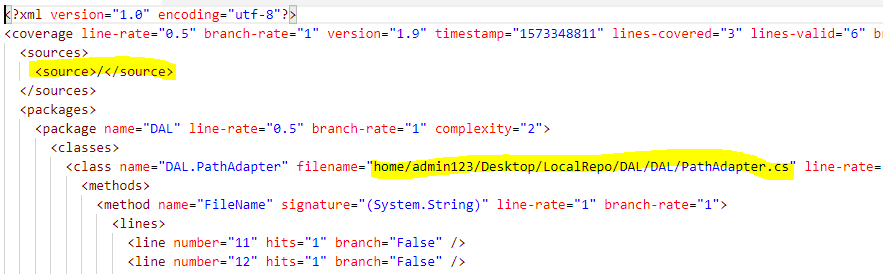

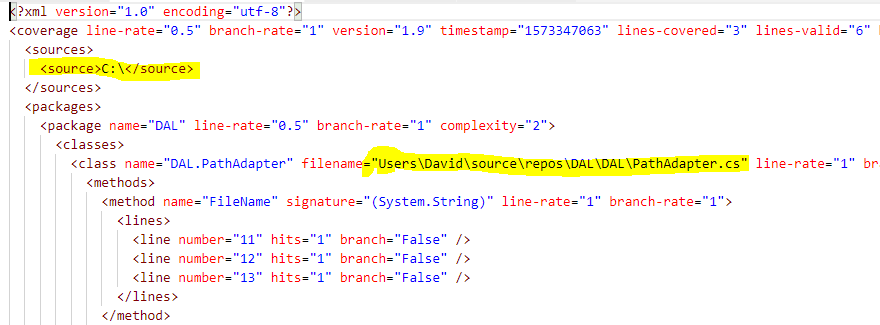

Here is the relevant part of a cobertura report:

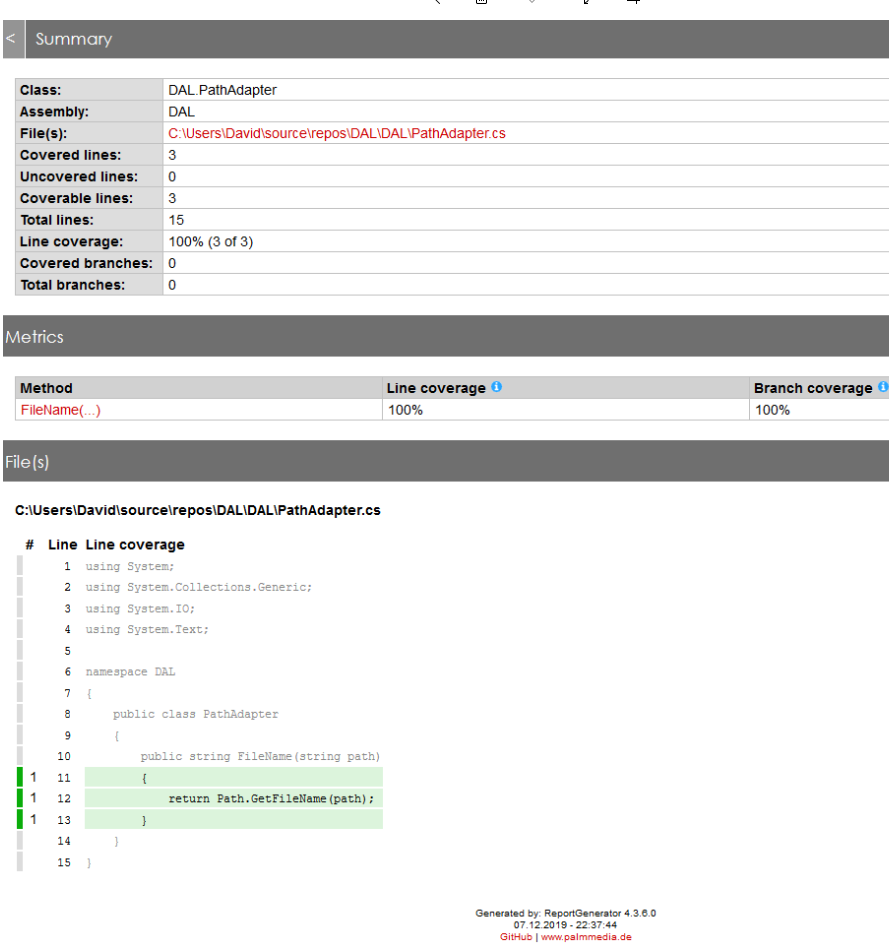

And this is the reportgenerator output for the cobertura report.

MarcoRossignoli · 2019-12-07T21:56:46Z

yep thank you

MarcoRossignoli · 2019-12-07T21:57:43Z

@danielpalme can you take a look at report generated at #614 (comment) and double confirm that it's ok?
This is the idea of how a reported should interpret a cobertura report https://github.com/tonerdo/coverlet/pull/614/files#diff-1eb780449e930439d94fbbcd49400e39R176 for us, are we close enough?

danielpalme · 2019-12-08T10:19:07Z

Your code looks fine to me.
ReportGenerator iterates through the source elements and combines the value with the filename attribute. The first combined file path that exists on disk is used.
Another option would be to just use the absolute path for the the filename attribute. Then no "guessing" is required.
Advantages:

Faster
More reliable (example a class with same name exists in several directories/namespaces)

See:
https://github.com/danielpalme/ReportGenerator/blob/master/src/ReportGenerator.Core/Parser/Preprocessing/CoberturaReportPreprocessor.cs

MarcoRossignoli · 2019-12-08T10:32:49Z

Another option would be to just use the absolute path for the the filename attribute. Then no "guessing" is required

This is the old behavior, but we need to split root+relative due to Jenkins reporter, it doesn't work well without sources

MarcoRossignoli

Looks fine!

MarcoRossignoli · 2019-12-08T16:09:26Z

Thank's Dave!
