Introduction

This is an Argo CD Extension which adds an AI Assistant Chatbot to the Argo CD UI. It currently uses llama-stack as the backend since this enables the potential use of tools such as MCP servers however at the moment it has only been tested with an inference engine using the Agent API.

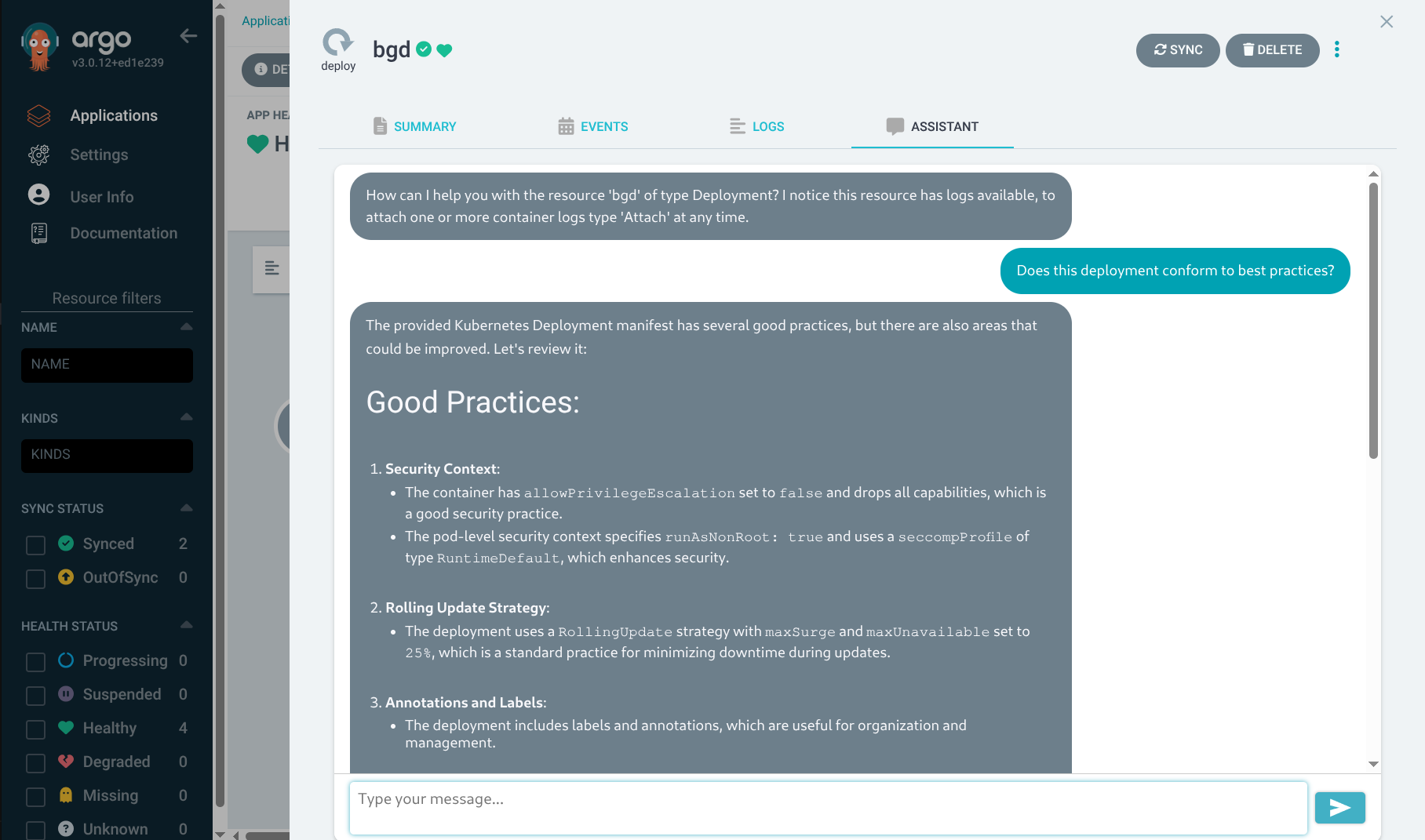

This extension adds an Assistant tab to the resources view where users can ask questions about the currently selected resource. The extension automatically adds manifests and events to the query context and logs can be added through a guided conversation flow.

To call llama-stack this uses the Argo CD Proxy Extension feature to avoid CORS issues.

Demo

An interactive video demo is available:

https://interact.redhat.com/share/xWi5je6tPnJe4dcspahl

Providers

The extension has been designed to support pluggable query providers with Llama-Stack and OpenShift Lightspeed as the supported back-end providers. Contributions welcome for additional providers!

Configuration

See the documentation on Settings

Installing Extension in Argo CD

To install the Extension see the Provider specific documentation:

• Llama-Stack
• Lightspeed

Development

To install dependencies you will need to use the --force switch as the Argo CD UI is using React 16 whereas some of the dependencies using later but compatible versions. I'm hoping in the future to get this working more seamlessly.

npm install --force

To build the extension use yarn run build, see package.json for other available commands.

I have not figured out a way to develop it with live code so I use the script ./deploy-local.sh to build and copy the extension into a running Argo CD on the cluster. Tweak the NAMESPACE and LABEL_NAME environment variables to match your instance of Argo CD. Note the LABEL_NAME needs to be a unique label on the Argo CD server component.

Packaging

To create a new release, bump the version number in package.json and then run yarn run package. This will create a compressed archive in ./dist that can be used by the Argo CD Extension Installer.

Limitations

There are some limitations as follows:

1. Only basic configuration is supported, I plan on adding more provider specific configuration so that configuration for llama-stack to use MCP servers can be incorporated.

2. When #1 is resolved, it's important to note that the Argo CD Proxy Extension does not have the ability to pass the Argo CD token to back-ends, IMHO this will be needed to leverage MCP securely in multi-tenant Argo CD since you want MCP access to reflect the permissions of the current user.

3. The Go Reverse Proxy the Argo CD Proxy Extension uses is not configurable and OOTB doesn't support streaming, a work-around by the extension of setting the ContentLength header to -1 is used but ideally this should be configurable in the proxy extension definition.

4. If the provider is using self-signed TLS you will need to inject the certs into the Argo CD server for trust.

Thanks

Thanks to the folks who work on the react-chatbotify component, it provides a lot of the capabilities used here and is an excellent open source component. If you need to provide a chatbot in a React interface its well worth checking out.
