Zero Dissipation ERK6(5) #1033

utkarsh530 · 2020-02-14T23:08:21Z

Hi, I have currently implemented RK6(5) based on the paper (It does not account for zero dissipation yet, some basic changes needs to be done) here which is the basis of paper mentioned in #867. However, since this is my first attempt, I may have made some errors and sim tests are failing. Can anyone help where to possibly search for errors. Thanks.

coveralls · 2020-02-14T23:55:05Z

Coverage increased (+0.07%) to 86.797% when pulling c15a279 on utkarsh530:FRK65 into 46b4763 on JuliaDiffEq:master.

ChrisRackauckas · 2020-02-15T00:14:32Z

What does the convergence plot look like?

utkarsh530 · 2020-02-15T10:53:22Z

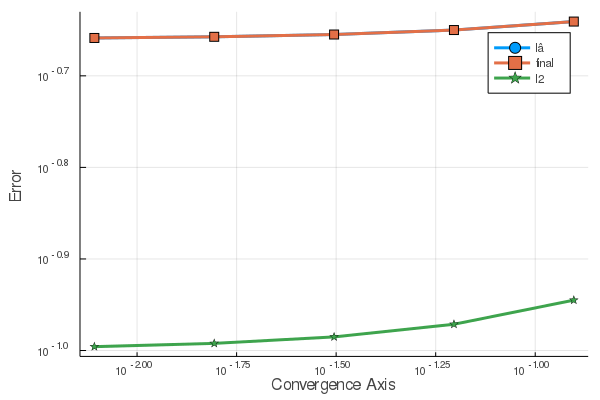

1-D out of place

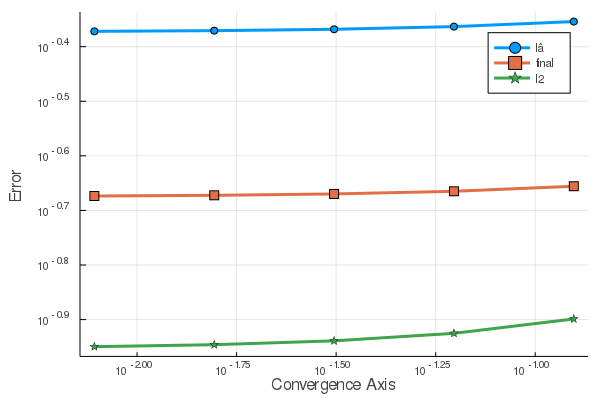

2-D in place

codecov · 2020-02-15T10:59:27Z

Codecov Report

Merging #1033 into master will decrease coverage by 41.11%.
The diff coverage is 0%.

@@             Coverage Diff             @@
##           master    #1033       +/-   ##
===========================================
- Coverage   76.74%   35.62%   -41.12%
===========================================
  Files          95       95
  Lines       30621    30044      -577
===========================================
- Hits        23500    10704    -12796
- Misses       7121    19340    +12219

Impacted Files	Coverage Δ
src/OrdinaryDiffEq.jl	`100% <ø> (ø)`	⬆️
src/caches/low_order_rk_caches.jl	`34.67% <0%> (-61.07%)`	⬇️
src/algorithms.jl	`44.25% <0%> (-39.63%)`	⬇️
src/alg_utils.jl	`7.39% <0%> (-20.1%)`	⬇️
src/perform_step/low_order_rk_perform_step.jl	`67.93% <0%> (-30.63%)`	⬇️
src/caches/rkn_caches.jl	`0% <0%> (-100%)`	⬇️
src/iterator_interface.jl	`0% <0%> (-100%)`	⬇️
src/caches/symplectic_caches.jl	`0% <0%> (-100%)`	⬇️
src/caches/prk_caches.jl	`0% <0%> (-100%)`	⬇️
src/tableaus/rkc_tableaus.jl	`0% <0%> (-100%)`	⬇️
... and 66 more

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update b762a2d...c15a279. Read the comment docs.

ChrisRackauckas · 2020-02-15T15:09:52Z

This isn't even converging. Do the b_i sum to 1? To the rows of a_i sum to c_i?

ChrisRackauckas · 2020-02-15T15:10:52Z

src/perform_step/low_order_rk_perform_step.jl

+  @unpack t, dt, uprev, u, f, p = integrator
+  @unpack α21, α31, α41, α51, α61, α71, α81, α91, α32, α43, α53, α63, α73, α83, α54, α64, α74, α84, α94, α65, α75, α85, α95, α76, α86, α96, α87, α97, α98, β1, β4, β5, β6, β7, β8, β1tilde, β4tilde, β5tilde, β6tilde, β7tilde, β8tilde, β9tilde, c2, c3, c4, c5, c6, c7, c8, c9 = cache
+  alg = unwrap_alg(integrator, true)
+  omega = alg.omega


looks like omega isn't used?

Actually, I am testing for convergence of paper I mentioned in my earlier comment, which had constant variables. The paper for zero dissipation requires only to change b4 b5 b6 to a function of omega which I will implement after this just to be sure that original coefficients are leading to convergence or not.

src/caches/low_order_rk_caches.jl

kanav99 · 2020-02-15T19:02:24Z

Hey! The b_i coefficients were bad. Check the tests now with the suggestions

utkarsh530 · 2020-02-15T23:00:53Z

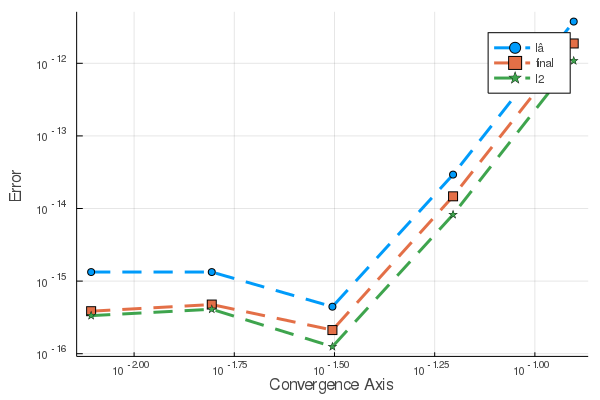

Yep, I corrected another coefficient a_i & btilde_i. The 2-D in place plot looks like this:

Order estimate:
1-D out of place
Expression: ≈(sim3.�est[:l∞], 6, atol=testTol) Evaluated: 2.7735194214179764 ≈ 6 (atol=0.2)
2-D in place:
Expression: ≈(sim3.�est[:l∞], 6, atol=testTol) Evaluated: 2.865412492134244 ≈ 6 (atol=0.2)
Coefficients are for Periodic IVPs and hence result does not follow?

ChrisRackauckas · 2020-02-15T23:12:59Z

Make the dts a little bit larger: it's saturating at floating point epsilon.

utkarsh530 · 2020-02-15T23:25:57Z

Yep, that worked, thanks! I will add code for zero dissipation coefficients.

Co-Authored-By: Kanav Gupta <[email protected]>

utkarsh530 · 2020-02-21T06:45:54Z

I have added zero-dissipation fitted coefficients.
Question: should we set omega = 0 if not specified? (It coincides with RK6(5))

ChrisRackauckas · 2020-02-21T09:29:33Z

Question: should we set omega = 0 if not specified? (It coincides with RK6(5))

sure

utkarsh530 · 2020-02-21T10:43:15Z

Made required changes to struct FRK65. Please review.

ChrisRackauckas · 2020-02-21T10:55:53Z

src/algorithms.jl

  lazy::Bool
  Vern9(;lazy=true) = new(lazy)
 end
+struct FRK65 <: OrdinaryDiffEqAdaptiveAlgorithm


Parameterize this

ChrisRackauckas · 2020-02-21T10:56:02Z

src/algorithms.jl

  lazy::Bool
  Vern9(;lazy=true) = new(lazy)
 end
+struct FRK65 <: OrdinaryDiffEqAdaptiveAlgorithm


Suggested change

struct FRK65 <: OrdinaryDiffEqAdaptiveAlgorithm

struct FRK65{T} <: OrdinaryDiffEqAdaptiveAlgorithm

ChrisRackauckas · 2020-02-21T10:56:11Z

src/algorithms.jl

  Vern9(;lazy=true) = new(lazy)
 end
+struct FRK65 <: OrdinaryDiffEqAdaptiveAlgorithm
+  omega::Float64


Suggested change

omega::Float64

omega::T

utkarsh530 · 2020-02-21T17:05:46Z

Made the required changes.

ChrisRackauckas · 2020-02-21T20:05:45Z

test/algconvergence/ode_convergence_tests.jl

-  sim3 = test_convergence(dts4,prob,FRK65(0)) #standard value for non zero-dissipation tests
-  @test sim3.𝒪est[:l∞] ≈ 6 atol=testTol
+  sim3 = test_convergence(dts4,prob,FRK65())
+  @test sim3.𝒪est[:l∞] ≈ 6 atol=testTol1


instead, make this 6.5 and keep the same testtol. Looks like super convergence. What does plot(sim3) look like?

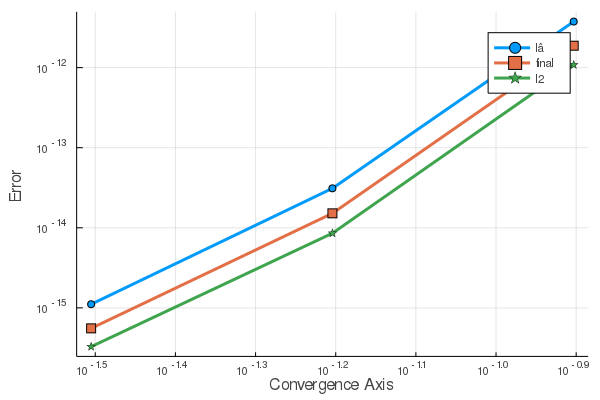

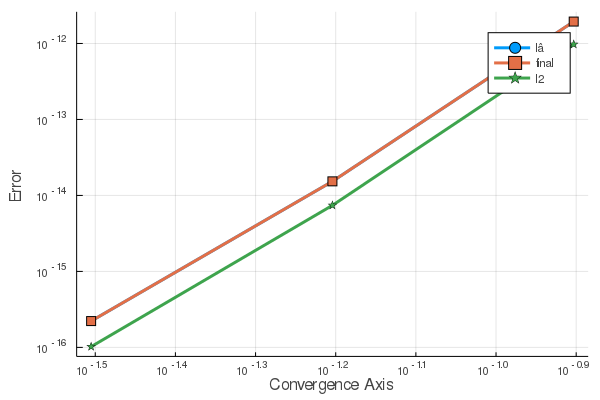

Here's the plot:

sim3.�est[:l∞]=6.547286289246398

sim3.�est[:l∞]=5.862512678209683
A test is failing if setting it to 6.5 and same testtol.

huh, that's weird. Instead of defining at testTol1, just put the larger value right in the code there and I'll accept.

Done. By the way, what is super convergence?
